Enabling HTTPS Configuration

Enabling https helps you have secure data transmission from your end to the server end. By enabling https, the encrypted data will be sent securely to the server whose authenticity will be verified using the SSL certificate. This helps in enhacing network security. To enable HTTPS in OpManager, kindly follow the below steps.

Note:

From version 126278, during installation, SSL will be enabled by default with a self signed certificate in all the editions, to enhance security. Administrator users can update the SSL certificate under Settings -> Security settings. After OpManager has been upgraded to the latest version, SSL will be recommended to be enabled through the UI. Click here to know more about SSL security recommendation

For OpManager versions 123181 and above

  1. Go to Settings → Basic Settings → Security Settings.Enabling HTTPS configuration in OpManager: Security settings under settings option
  2. Enable the "Secure Mode" button.
    Enabling HTTPS configuration in OpManager: Enable secure mode
  3. Once the button is enabled, you will be prompted to choose from three options, namely:
    • Generate a CSR
    • Self-signed Certificate
    • Import Certificate

    Enabling HTTPS configuration in OpManager: Choice of certificate type

  4. Generate CSR:

    This option helps you generate a Certificate Signing Request (CSR). A CSR or Certificate Signing request is a block of encoded text that is given to a Certificate Authority when applying for an SSL Certificate. It is usually generated on the server where the certificate will be installed and contains information that will be included in the certificate such as the organization name, common name (domain name), locality, and country. It also contains the public key that will be included in the certificate. A private key is usually created at the same time that you create the CSR, making a key pair. A CSR is generally encoded using ASN.1 according to the PKCS #10 specification.

  5. A certificate authority will use a CSR to create your SSL certificate, but it does not need your private key. You need to keep your private key secret. The certificate created with a particular CSR will only work with the private key that was generated by it. So if you lose the private key, the certificate will no longer work.

    Enabling HTTPS configuration in OpManager: Importance of private key for CSR

  6. Once you click on 'Generate CSR', you will have to fill out a few information for the certificate you want to create for use in OpManager Server.

    Enabling HTTPS configuration in OpManager: Fill in all details to generate CSR

  7. On clicking the Generate button, your CSR and Server Key files will be downloaded as a ZIP file. Extract the file and use the "OpManager.csr" file to get a signed certificate from a CA of your choice.

    Enabling HTTPS configuration in OpManager: Extract zip file to use server key files

  8. After getting signed by the CA, you will get a certificate file which you can import into OpManager using the Import Certificate option discussed below.
  9. Self-Signed Certificate:This option lets you enable SSL in OpManager with a self-generated and self-signed certificate. This certificate is safe to use and is equally secure. But browsers may display them as untrusted since it is not signed by a Valid CA (Certificate Authority).

    Enabling HTTPS configuration in OpManager: Create self-signed certificate option

  10. You will be prompted to restart OpManager for the changes to take effect.

    Enabling HTTPS configuration in OpManager: Restart OpManager service for changes to take effect

  11. Import Certificate:
    Use this option if you already have a valid certificate and key files (or) a keystore or a PFX file with the certificate.

    Enabling HTTPS configuration in OpManager: Import certificate option

  12. Select a certificate file.

    Enabling HTTPS configuration in OpManager: Select certificate file

  13. Select the appropriate "key" file.

    Enabling HTTPS configuration in OpManager: Select appropriate key file

  14. Verify and choose Import.

    Enabling HTTPS configuration in OpManager: Verify and select import

  15. If the certificate cannot be validated with trusted sources, you will be asked to provide the intermediate certificates and root certificate files.

    Enabling HTTPS configuration in OpManager: Provide intermediate certificates and root certificate files if certificates cannot be validated

  16. Once uploaded, verify the certificate and click Import.

    Enabling HTTPS configuration in OpManager: Import once intermediate/ root certificate is uploaded

  17. On successful import, you will be prompted to restart OpManager.

    Enabling HTTPS configuration in OpManager: Restart OpManager service once successfully uploaded

  18. Importing from PFX or Keystore:
    If you are using a Keystore or a PFX file, you will be prompted to input the password for opening the file.

    Enabling HTTPS configuration in OpManager: Input the password for opening the file

  19. On clicking Fetch, you will be provided with a list of Key-entries present in the keystore. Choose a specific alias which is to be used to enable SSL in OpManager.

    Enabling HTTPS configuration in OpManager: Choice of appropriate key entry from the list to enable SSL in OpManager

  20. You will be shown a preview of the certificate information, verify and click on Importfor using the certificate.

    Enabling HTTPS configuration in OpManager: Verify and import details

  21. Finally you will be prompted to restart OpManager for the changes to take effect.

    Enabling HTTPS configuration in OpManager: Restart OpManager for changes to take effect

  22. Finally, after enabling SSL through one of the above ways, you will be able to connect to OpManager in secure mode:

    Enabling HTTPS configuration in OpManager: Secure mode in OpManager after SSL is enabled

Steps to Regenerate a Self-Signed Certificate (From version 128455)

  1. Navigate to Settings -> General Settings -> Security Settings -> SSL Configuration.
  2. Click the edit icon next to SSL Certificate Details.
  3. Select the Self-signed Certificate option and click Create. This action will regenerate the self-signed certificate and apply it for HTTPS connections.
  4. Restart the server to apply the changes.

Note:

  • To enable SSL in a failover configured instance of OpManager using a third party certificate, the certificate should have the Primary host name as the Common Name, and the Secondary Host name as the Subject Alternative Name (SAN) in it.
  • If Failover is configured with the Shared folder, once the SSL certificate is applied in the Primary server, the details will be automatically updated to the Secondary server.

SSL Security Recommendation:

  • During the evaluation, both HTTP and HTTPS ports will be accessible. If HTTP is used, the security recommendation popup will notify the user to use HTTPS when they login.

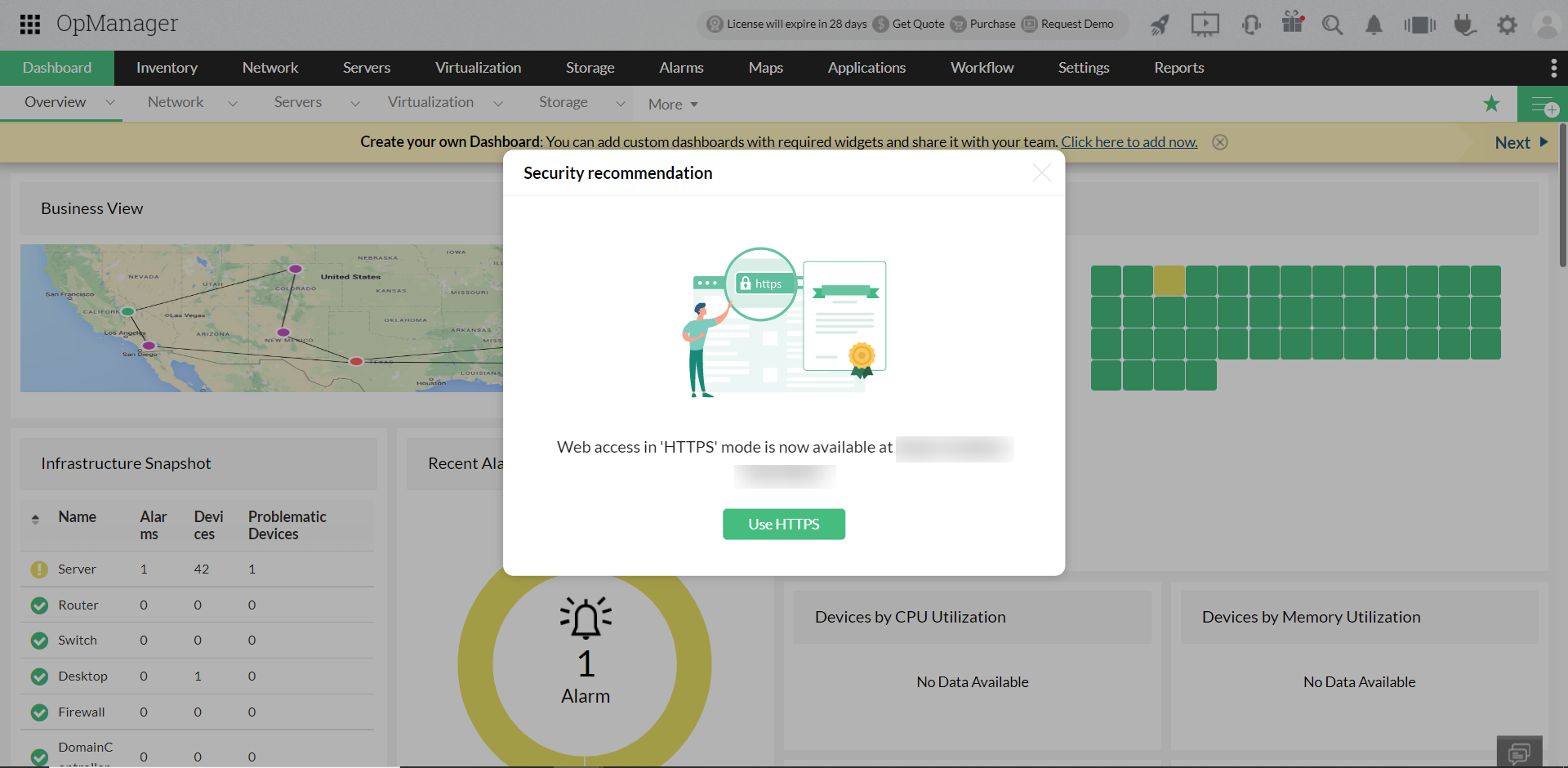

    • Enabling HTTPS configuration in OpManager: SSL recommendation

  • Once the registered license is applied, the user will be prompted to restart once. This restart is required to enable automatic redirection to HTTPS when the web client is accessed using HTTP.

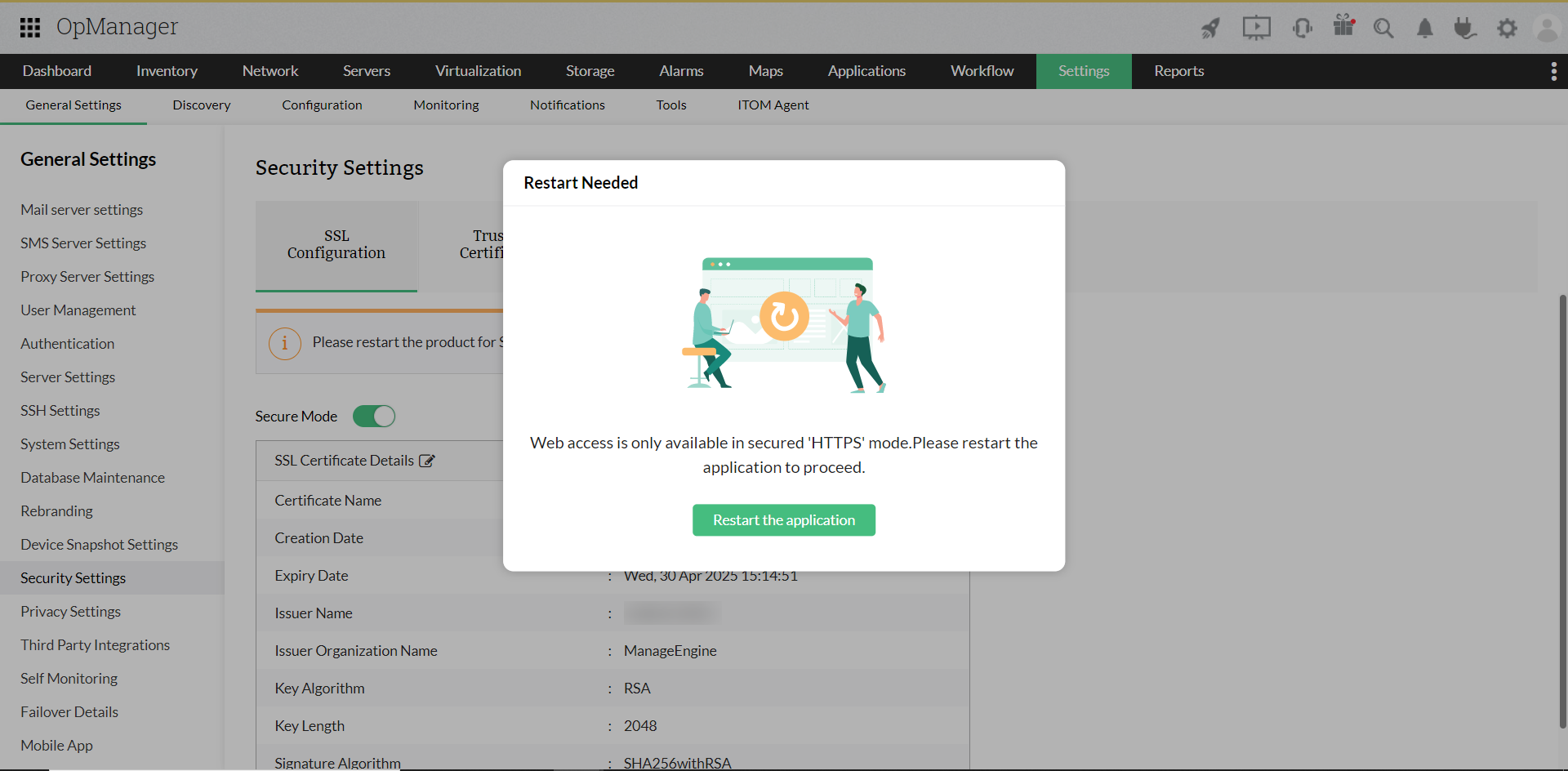

    • Enabling HTTPS configuration in OpManager: Restart application after license application

  • After upgrading to version 126278 or above, the admin user will be recommended to enable SSL after login. This notification can be skipped for 2 weeks, after which the recommendation will be displayed again.

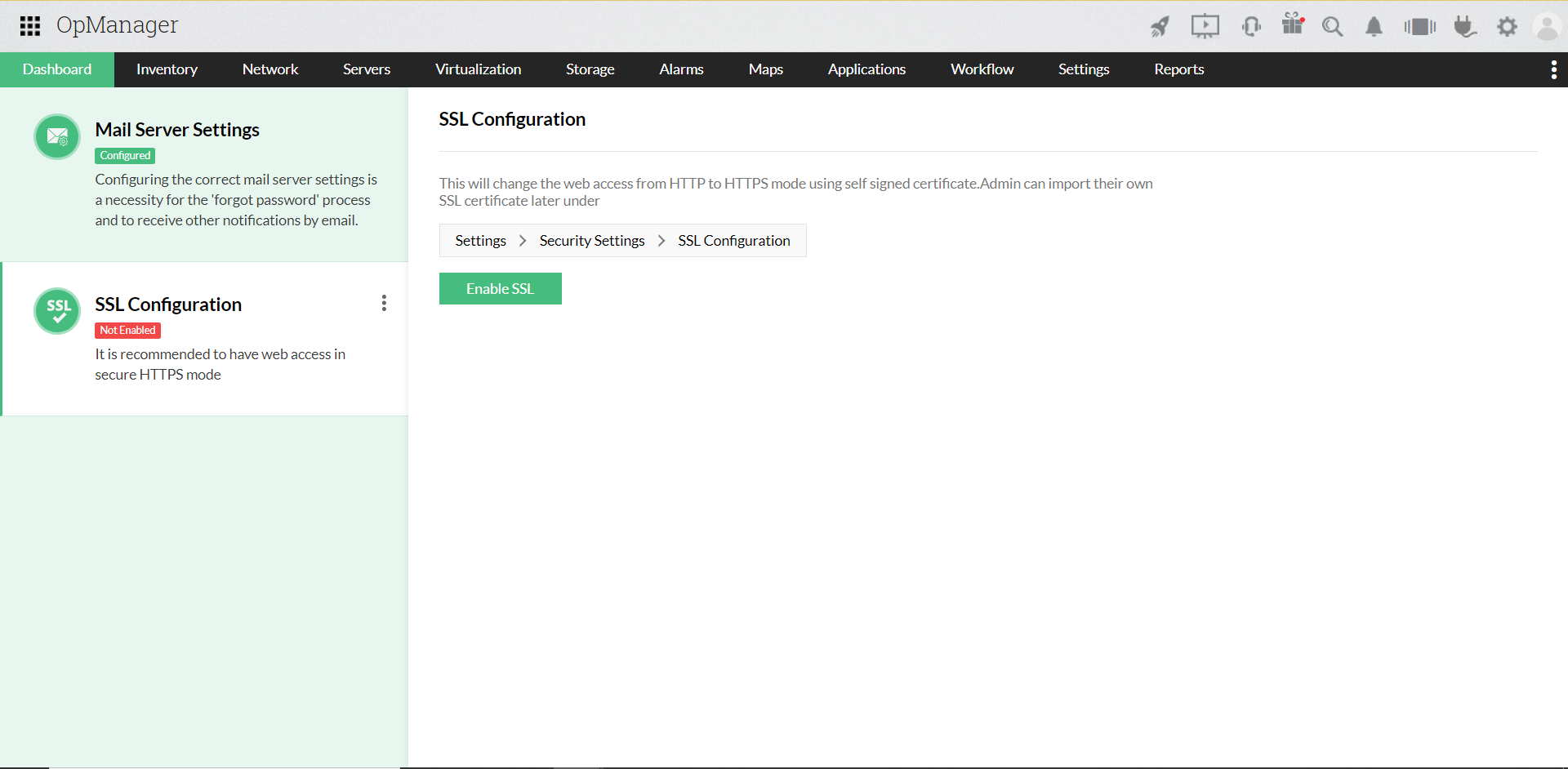

    • Enabling HTTPS configuration in OpManager: Enable SSL

  • If OpManager Enterprise Edition or an Agent has been installed, the option to disable SSL will be restricted.

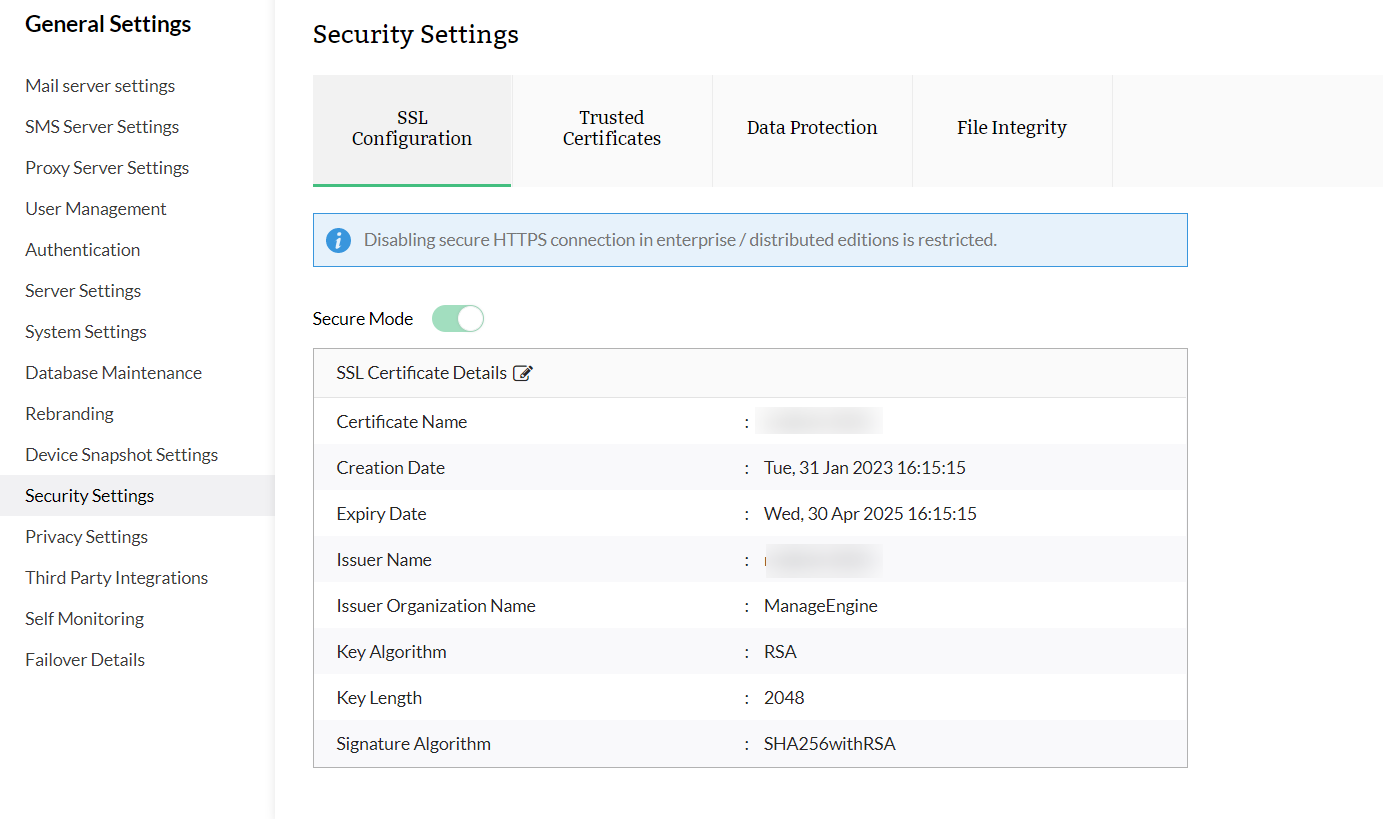

    • Enabling HTTPS configuration in OpManager: OpManager SSL option enabled
