User Management

User Management settings allows you to configure users (Administrator, Operator, and Guest) and the Radius server settings.You can create users in NetFlow Analyzer and provide required privileges to them. The option to 'Add Users' is available only for the admin login account or those accounts which have 'Full Control' privilege.

Administrator User: Administrator Users have unrestricted access to perform read/write operations in NetFlow Analyzer. They add/remove devices, troubleshoot issues, change configurations and more without any limitations i.e they have complete access.

Operator User: Operator Users have read-only/restricted access. They can be granted further access by the Administrator User.

Guest User: Guest Users have read-only access. Further access can be granted by the Administrator User.

User privileges

  Privileges Administrator Operator Guest
Discovery Export flow ✔ ✘ ✘
Scope All devices/select specific devices or device groups All devices Limited to assigned scope Limited to assigned scope
Tab view WLC ✔ ✔ ✔
  Attacks ✔ ✘ ✘
  DPI ✔ ✘ ✘
  NCM ✔ ✔ ✘
  IPSLA ✔ ✘ ✘
  Alarms ✔ ✔ ✔
Reports Search ✔ ✔ ✔
  Report profiles ✔ ✘ ✘
  Forensics ✔ ✔ ✔
  Consolidated ✔ ✔ ✔
  Capacilty planning ✔ ✔ ✔
  Compare ✔ ✔ ✔
  Protocol distribution ✔ ✔ ✔
  Inventory ✔ ✔ ✔
  Billing ✔ ✘ ✘
  Forecast ✔ ✔ ✔
  Schedule ✔ ✘ ✘
Settings User management ✔ ✔ ✘
  Rebranding ✔ ✘ ✘
  Alert profiles ✔ ✔ ✘
  NBAR/CBQoS ✔ ✘ ✘
  HighPerf add-on ✔ ✘ ✘

Settings

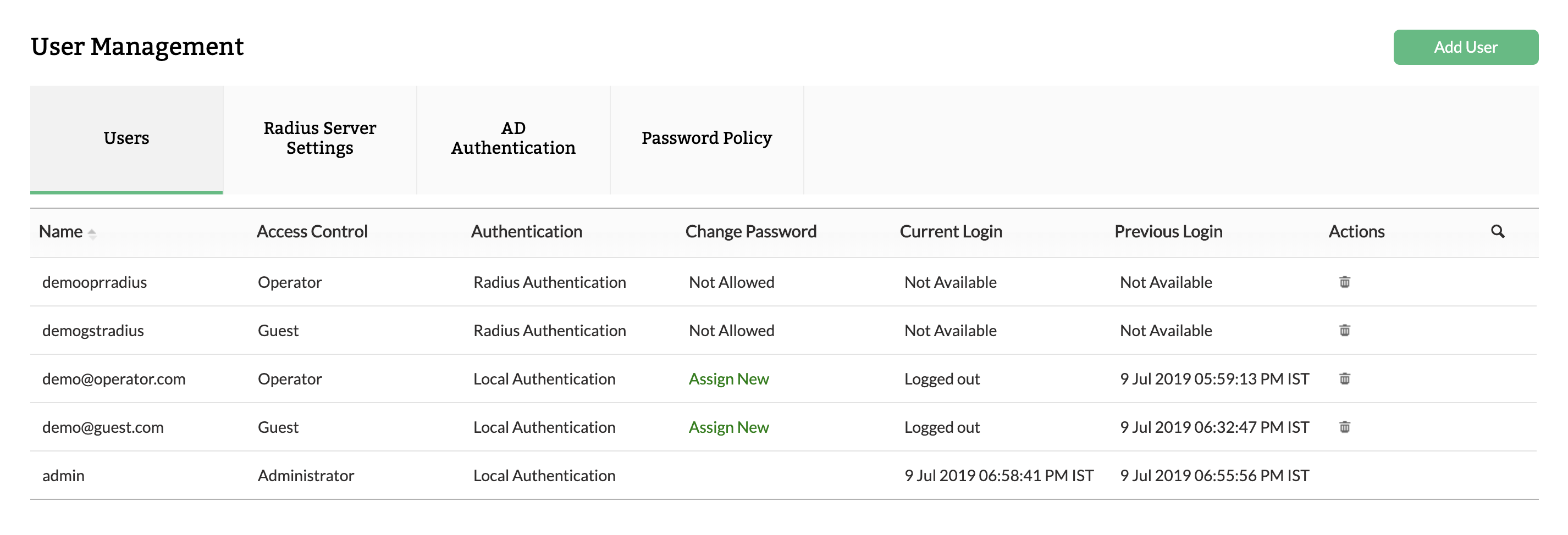

Users

Rest API

Fields Description
User Name Specify the user name or ID.
Access control You can provide the access control as Admin, Operator, or Guest.
Authentication Default value is Local Authentication.
Change Password You can select 'Assign New' to reset the password for operators and users.
Current Login Displays the current Login status.
Previous Login Displays the previous Login status.
Actions You can delete the users and operators using this option.
Search You can search for users by providing any of the above field details.

Click here to know how you can add new users.

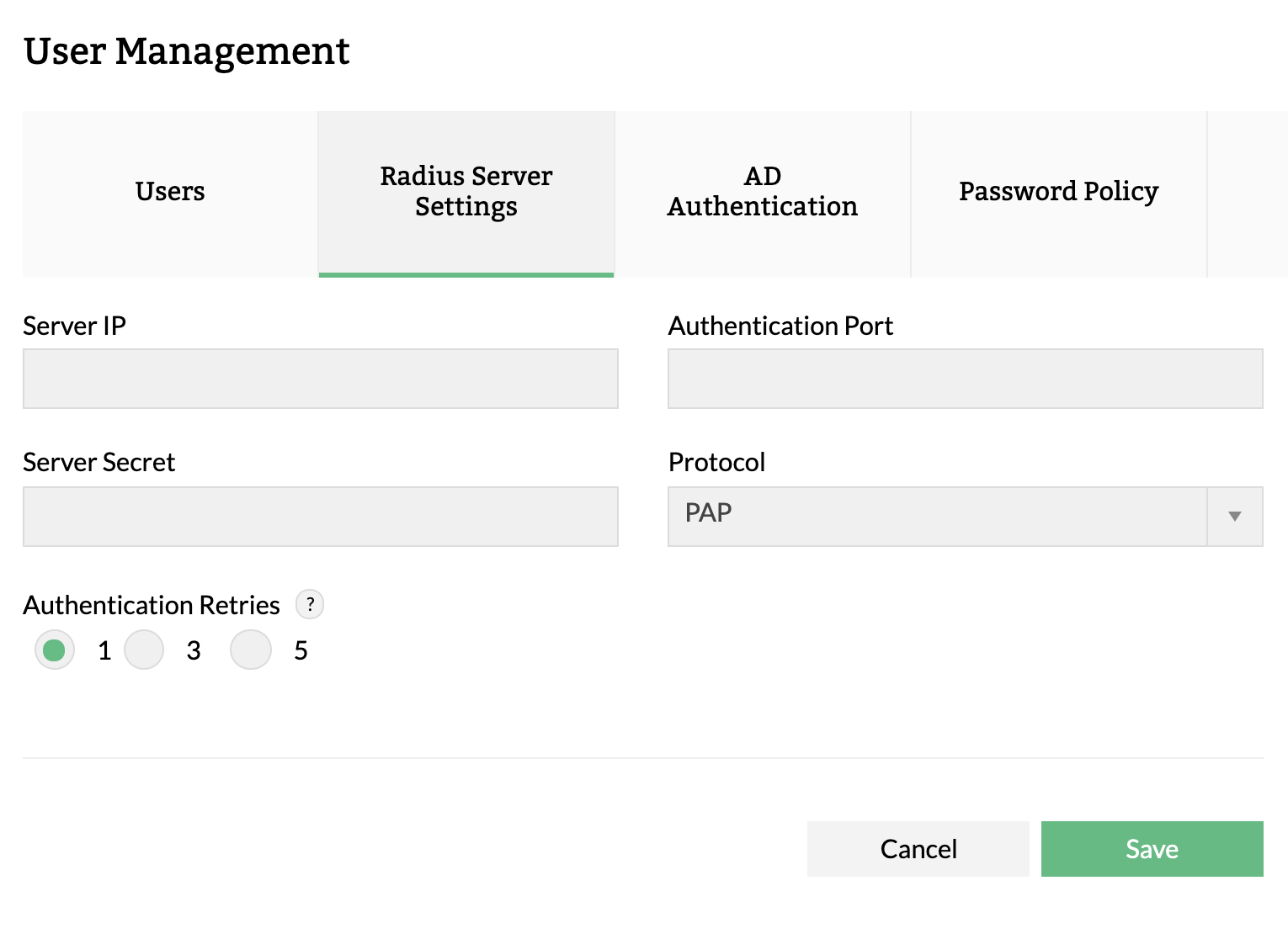

Radius Server Settings

Radius Server settings

Fields Description
Server IP  Specify the Server IP
Authentication Port Specify the Authentication Port
Server Secret

Specify the Server Secret
Change Password

You can select Assign New to reset the password for operators and users.
Protocol

Select the Protocol. Default value is PAP.
Authentication Retries

Set the number of Authentication Retries. Default value is 1.
